U-Cups: X-Pac® Loaded U-Cup B Lip

Associated Documents

View XP • X-PAC® Symmetrical, Loaded B-Lip, U-Cup • Engineering Guide Vol. 4 • JUN23A

For pricebreaks, please login to your online account.

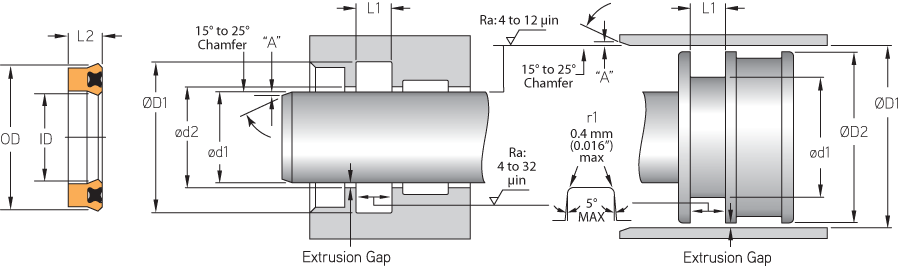

PART NUMBER	od₁	OD₁	L₂	L₁	MFP LIST
XP-125-00.375-250BU4150	0.375	0.625	0.250	0.275	---	Add to RFQ
XP-125-00.437-250BU4150	0.437	0.687	0.250	0.275	---	Add to RFQ
XP-125-00.500-125BU4150	0.500	0.750	0.125	0.138	---	Add to RFQ
XP-125-00.500-250BU4150	0.500	0.750	0.250	0.275	---	Add to RFQ
XP-125-00.562-125BU4150	0.562	0.812	0.125	0.138	---	Add to RFQ
XP-125-00.625-125BU4150	0.625	0.875	0.125	0.138	---	Add to RFQ
XP-125-00.625-250BU4150	0.625	0.875	0.250	0.275	---	Add to RFQ
XP-125-00.750-125BU4150	0.750	1.000	0.125	0.138	---	Add to RFQ
XP-125-00.750-250BU4150	0.750	1.000	0.250	0.275	---	Add to RFQ
XP-125-00.875-125BU4150	0.875	1.125	0.125	0.138	---	Add to RFQ
XP-125-00.875-250BU4150	0.875	1.125	0.250	0.275	---	Add to RFQ
XP-125-01.000-125BU4150	1.000	1.250	0.125	0.138	---	Add to RFQ
XP-125-01.000-187BU4150	1.000	1.250	0.187	0.207	---	Add to RFQ
XP-125-01.000-250BU4150	1.000	1.250	0.250	0.275	---	Add to RFQ
XP-125-01.062-250BU4150	1.062	1.312	0.250	0.275	---	Add to RFQ
XP-125-01.125-125BU4150	1.125	1.375	0.125	0.138	---	Add to RFQ
XP-125-01.125-187BU4150	1.125	1.375	0.187	0.207	---	Add to RFQ
XP-125-01.125-250BU4150	1.125	1.375	0.250	0.275	---	Add to RFQ
XP-125-01.250-125BU4150	1.250	1.500	0.125	0.138	---	Add to RFQ
XP-125-01.250-187BU4150	1.250	1.500	0.187	0.207	---	Add to RFQ
XP-125-01.250-250BU4150	1.250	1.500	0.250	0.275	---	Add to RFQ
XP-125-01.375-250BU4150	1.375	1.625	0.250	0.275	---	Add to RFQ
XP-125-01.500-187BU4150	1.500	1.750	0.187	0.207	---	Add to RFQ
XP-125-01.500-250BU4150	1.500	1.750	0.250	0.275	---	Add to RFQ
XP-125-01.750-250BU4150	1.750	2.000	0.250	0.275	---	Add to RFQ
XP-125-02.000-250BU4150	2.000	2.250	0.250	0.275	---	Add to RFQ
XP-125-02.500-250BU4150	2.500	2.750	0.250	0.275	---	Add to RFQ
XP-125-02.750-375BU4150	2.750	3.000	0.375	0.413	---	Add to RFQ
XP-125-04.750-250BU4150	4.750	5.000	0.250	0.275	---	Add to RFQ
XP-156-01.375-156BU4150	1.375	1.687	0.156	0.172	---	Add to RFQ
XP-187-00.625-375BU4150	0.625	1.000	0.375	0.413	---	Add to RFQ
XP-187-00.750-312BU4150	0.750	1.125	0.312	0.344	---	Add to RFQ
XP-187-00.875-312BU4150	0.875	1.250	0.312	0.344	---	Add to RFQ
XP-187-01.000-312BU4150	1.000	1.375	0.312	0.344	---	Add to RFQ
XP-187-01.000-375BU4150	1.000	1.375	0.375	0.413	---	Add to RFQ
XP-187-01.062-312BU4150	1.062	1.437	0.312	0.344	---	Add to RFQ
XP-187-01.125-250BU4150	1.125	1.500	0.250	0.275	---	Add to RFQ
XP-187-01.125-312BU4150	1.125	1.500	0.312	0.344	---	Add to RFQ
XP-187-01.125-375BU4150	1.125	1.500	0.375	0.413	---	Add to RFQ
XP-187-01.187-312BU4150	1.187	1.562	0.312	0.344	---	Add to RFQ
XP-187-01.250-187BU4150	1.250	1.625	0.187	0.207	---	Add to RFQ
XP-187-01.250-250BU4150	1.250	1.625	0.250	0.275	---	Add to RFQ
XP-187-01.250-312BU4150	1.250	1.625	0.312	0.344	---	Add to RFQ
XP-187-01.250-375BU4150	1.250	1.625	0.375	0.413	---	Add to RFQ
XP-187-01.375-187BU4150	1.375	1.750	0.187	0.207	---	Add to RFQ
XP-187-01.375-250BU4150	1.375	1.750	0.250	0.275	---	Add to RFQ
XP-187-01.375-312BU4150	1.375	1.750	0.312	0.344	---	Add to RFQ
XP-187-01.375-375BU4150	1.375	1.750	0.375	0.413	---	Add to RFQ
XP-187-01.500-250BU4150	1.500	1.875	0.250	0.275	---	Add to RFQ
XP-187-01.500-312BU4150	1.500	1.875	0.312	0.344	---	Add to RFQ
XP-187-01.500-375BU4150	1.500	1.875	0.375	0.413	---	Add to RFQ
XP-187-01.625-187BU4150	1.625	2.000	0.187	0.207	---	Add to RFQ
XP-187-01.625-250BU4150	1.625	2.000	0.250	0.275	---	Add to RFQ
XP-187-01.625-312BU4150	1.625	2.000	0.312	0.344	---	Add to RFQ
XP-187-01.625-375BU4150	1.625	2.000	0.375	0.413	---	Add to RFQ
XP-187-01.750-187BU4150	1.750	2.125	0.187	0.207	---	Add to RFQ
XP-187-01.750-250BU4150	1.750	2.125	0.250	0.275	---	Add to RFQ
XP-187-01.750-312BU4150	1.750	2.125	0.312	0.344	---	Add to RFQ
XP-187-01.750-375BU4150	1.750	2.125	0.375	0.413	---	Add to RFQ
XP-187-01.875-375BU4150	1.875	2.250	0.375	0.413	---	Add to RFQ
XP-187-02.000-250BU4150	2.000	2.375	0.250	0.275	---	Add to RFQ
XP-187-02.000-312BU4150	2.000	2.375	0.312	0.344	---	Add to RFQ
XP-187-02.000-375BU4150	2.000	2.375	0.375	0.413	---	Add to RFQ
XP-187-02.125-187BU4150	2.125	2.500	0.187	0.207	---	Add to RFQ
XP-187-02.125-250BU4150	2.125	2.500	0.250	0.275	---	Add to RFQ
XP-187-02.125-375BU4150	2.125	2.500	0.375	0.413	---	Add to RFQ
XP-187-02.250-375BU4150	2.250	2.625	0.375	0.413	---	Add to RFQ
XP-187-02.375-375BU4150	2.375	2.750	0.375	0.413	---	Add to RFQ
XP-187-02.500-375BU4150	2.500	2.875	0.375	0.413	---	Add to RFQ
XP-187-02.625-375BU4150	2.625	3.000	0.375	0.413	---	Add to RFQ
XP-187-02.750-375BU4150	2.750	3.125	0.375	0.413	---	Add to RFQ
XP-187-02.875-375BU4150	2.875	3.250	0.375	0.413	---	Add to RFQ
XP-187-03.000-375BU4150	3.000	3.375	0.375	0.413	---	Add to RFQ
XP-187-03.125-375BU4150	3.125	3.500	0.375	0.413	---	Add to RFQ
XP-187-03.375-187BU4150	3.375	3.750	0.187	0.207	---	Add to RFQ
XP-187-03.500-375BU4150	3.500	3.875	0.375	0.413	---	Add to RFQ
XP-187-03.625-187BU4150	3.625	4.000	0.187	0.207	---	Add to RFQ
XP-187-03.625-375BU4150	3.625	4.000	0.375	0.413	---	Add to RFQ
XP-187-03.750-375BU4150	3.750	4.125	0.375	0.413	---	Add to RFQ
XP-250-00.500-375BU4150	0.500	1.000	0.375	0.413	---	Add to RFQ
XP-250-01.000-250BU4150	1.000	1.500	0.250	0.275	---	Add to RFQ
XP-250-01.000-375BU4150	1.000	1.500	0.375	0.413	---	Add to RFQ
XP-250-01.125-250BU4150	1.125	1.625	0.250	0.275	---	Add to RFQ
XP-250-01.125-375BU4150	1.125	1.625	0.375	0.413	---	Add to RFQ
XP-250-01.250-250BU4150	1.250	1.750	0.250	0.275	---	Add to RFQ
XP-250-01.250-375BU4150	1.250	1.750	0.375	0.413	---	Add to RFQ
XP-250-01.375-250BU4150	1.375	1.875	0.250	0.275	---	Add to RFQ
XP-250-01.375-375BU4150	1.375	1.875	0.375	0.413	---	Add to RFQ
XP-250-01.500-250BU4150	1.500	2.000	0.250	0.275	---	Add to RFQ
XP-250-01.500-375BU4150	1.500	2.000	0.375	0.413	---	Add to RFQ
XP-250-01.625-312BU4150	1.625	2.125	0.312	0.344	---	Add to RFQ
XP-250-01.625-375BU4150	1.625	2.125	0.375	0.413	---	Add to RFQ
XP-250-01.750-375BU4150	1.750	2.250	0.375	0.413	---	Add to RFQ
XP-250-02.000-312BU4150	2.000	2.500	0.312	0.344	---	Add to RFQ
XP-250-02.000-375BU4150	2.000	2.500	0.375	0.413	---	Add to RFQ
XP-250-02.125-375BU4150	2.125	2.625	0.375	0.413	---	Add to RFQ
XP-250-02.250-375BU4150	2.250	2.750	0.375	0.413	---	Add to RFQ
XP-250-02.375-375BU4150	2.375	2.875	0.375	0.430	---	Add to RFQ
XP-250-02.500-312BU4150	2.500	3.000	0.312	0.344	---	Add to RFQ
XP-250-02.500-375BU4150	2.500	3.000	0.375	0.413	---	Add to RFQ
XP-250-02.500-500BU4150	2.500	3.000	0.500	0.550	---	Add to RFQ
XP-250-02.625-375BU4150	2.625	3.125	0.375	0.413	---	Add to RFQ
XP-250-02.750-375BU4150	2.750	3.250	0.375	0.413	---	Add to RFQ
XP-250-03.000-250BU4150	3.000	3.500	0.250	0.275	---	Add to RFQ
XP-250-03.000-375BU4150	3.000	3.500	0.375	0.413	---	Add to RFQ
XP-250-03.125-375BU4150	3.125	3.625	0.375	0.413	---	Add to RFQ
XP-250-03.250-375BU4150	3.250	3.750	0.375	0.413	---	Add to RFQ
XP-250-03.500-250BU4150	3.500	4.000	0.250	0.275	---	Add to RFQ
XP-250-03.500-312BU4150	3.500	4.000	0.312	0.344	---	Add to RFQ
XP-250-03.500-375BU4150	3.500	4.000	0.375	0.413	---	Add to RFQ
XP-250-03.750-375BU4150	3.750	4.250	0.375	0.413	---	Add to RFQ
XP-250-04.000-250BU4150	4.000	4.500	0.250	0.275	---	Add to RFQ
XP-250-04.000-375BU4150	4.000	4.500	0.375	0.413	---	Add to RFQ
XP-250-04.000-500BU4150	4.000	4.500	0.500	0.550	---	Add to RFQ
XP-250-04.000-562BU4150	4.000	4.500	0.562	0.619	---	Add to RFQ
XP-250-04.250-562BU4150	4.250	4.750	0.562	0.619	---	Add to RFQ
XP-250-04.500-250BU4150	4.500	5.000	0.250	0.275	---	Add to RFQ
XP-250-04.500-375BU4150	4.500	5.000	0.375	0.413	---	Add to RFQ
XP-250-04.500-500BU4150	4.500	5.000	0.500	0.550	---	Add to RFQ
XP-250-04.500-562BU4150	4.500	5.000	0.562	0.619	---	Add to RFQ
XP-250-04.625-250BU4150	4.625	5.125	0.250	0.275	---	Add to RFQ
XP-250-04.750-562BU4150	4.750	5.250	0.562	0.619	---	Add to RFQ
XP-250-05.000-250BU4150	5.000	5.500	0.250	0.275	---	Add to RFQ
XP-250-05.000-375BU4150	5.000	5.500	0.375	0.413	---	Add to RFQ
XP-250-05.000-562BU4150	5.000	5.500	0.562	0.619	---	Add to RFQ
XP-250-05.250-375BU4150	5.250	5.750	0.375	0.413	---	Add to RFQ
XP-250-05.250-562BU4150	5.250	5.750	0.562	0.619	---	Add to RFQ
XP-250-05.500-375BU4150	5.500	6.000	0.375	0.413	---	Add to RFQ
XP-250-05.500-562BU4150	5.500	6.000	0.562	0.619	---	Add to RFQ
XP-250-05.500-625BU4150	5.500	6.000	0.625	0.688	---	Add to RFQ
XP-250-05.750-375BU4150	5.750	6.250	0.375	0.413	---	Add to RFQ
XP-250-06.000-375BU4150	6.000	6.500	0.375	0.413	---	Add to RFQ
XP-250-06.000-562BU4150	6.000	6.500	0.562	0.619	---	Add to RFQ
XP-250-06.250-562BU4150	6.250	6.750	0.562	0.619	---	Add to RFQ
XP-250-06.500-375BU4150	6.500	7.000	0.375	0.413	---	Add to RFQ
XP-250-07.500-375BU4150	7.500	8.000	0.375	0.413	---	Add to RFQ
XP-250-08.250-375BU4150	8.250	8.750	0.375	0.413	---	Add to RFQ
XP-250-08.500-562BU4150	8.500	9.000	0.562	0.619	---	Add to RFQ
XP-250-08.750-375B	8.750	9.250	0.375	0.413	---	Add to RFQ
XP-250-09.000-375B	9.000	9.500	0.375	0.413	---	Add to RFQ
XP-312-00.875-562BU4150	0.875	1.500	0.562	0.619	---	Add to RFQ
XP-312-01.000-375BU4150	1.000	1.625	0.375	0.413	---	Add to RFQ
XP-312-01.000-500BU4150	1.000	1.625	0.500	0.550	---	Add to RFQ
XP-312-01.250-312BU4150	1.250	1.875	0.312	0.344	---	Add to RFQ
XP-312-01.250-500BU4150	1.250	1.875	0.500	0.550	---	Add to RFQ
XP-312-01.250-562BU4150	1.250	1.875	0.562	0.619	---	Add to RFQ
XP-312-01.375-312BU4150	1.375	2.000	0.312	0.344	---	Add to RFQ
XP-312-01.375-375BU4150	1.375	2.000	0.375	0.413	---	Add to RFQ
XP-312-01.375-500BU4150	1.375	2.000	0.500	0.550	---	Add to RFQ
XP-312-01.375-562BU4150	1.375	2.000	0.562	0.619	---	Add to RFQ
XP-312-01.750-312BU4150	1.750	2.375	0.312	0.344	---	Add to RFQ
XP-312-01.750-375BU4150	1.750	2.375	0.375	0.413	---	Add to RFQ
XP-312-01.750-500BU4150	1.750	2.375	0.500	0.550	---	Add to RFQ
XP-312-01.875-500BU4150	1.875	2.500	0.500	0.550	---	Add to RFQ
XP-312-01.875-562BU4150	1.875	2.500	0.562	0.190	---	Add to RFQ
XP-312-02.000-312BU4150	2.000	2.625	0.312	0.344	---	Add to RFQ
XP-312-02.000-500BU4150	2.000	2.625	0.500	0.550	---	Add to RFQ
XP-312-02.000-562BU4150	2.000	2.625	0.562	0.619	---	Add to RFQ
XP-312-02.250-375BU4150	2.250	2.875	0.375	0.413	---	Add to RFQ
XP-312-02.250-500BU4150	2.250	2.875	0.500	0.550	---	Add to RFQ
XP-312-02.375-500BU4150	2.375	3.000	0.500	0.550	---	Add to RFQ
XP-312-02.500-500BU4150	2.500	3.125	0.500	0.550	---	Add to RFQ
XP-312-02.625-500BU4150	3.625	3.250	0.500	0.550	---	Add to RFQ
XP-312-02.750-500BU4150	2.750	3.375	0.500	0.550	---	Add to RFQ
XP-312-02.875-500BU4150	2.875	3.500	0.500	0.550	---	Add to RFQ
XP-312-02.875-562BU4150	2.875	3.500	0.562	0.619	---	Add to RFQ
XP-312-03.000-500BU4150	3.000	3.625	0.500	0.550	---	Add to RFQ
XP-312-03.250-500BU4150	3.250	3.875	0.500	0.550	---	Add to RFQ
XP-312-03.375-500BU4150	3.375	4.000	0.500	0.550	---	Add to RFQ
XP-312-03.375-562BU4150	3.375	4.000	0.562	0.619	---	Add to RFQ
XP-312-03.625-375BU4150	3.625	4.250	0.375	0.413	---	Add to RFQ
XP-312-03.750-500BU4150	3.750	4.375	0.500	0.550	---	Add to RFQ
XP-312-04.000-375BU4150	4.000	4.625	0.375	0.413	---	Add to RFQ
XP-312-04.000-562BU4150	4.000	4.625	0.562	0.619	---	Add to RFQ
XP-312-04.375-312BU4150	4.375	5.000	0.312	0.344	---	Add to RFQ
XP-312-04.375-562BU4150	4.375	5.000	0.562	0.619	---	Add to RFQ
XP-312-04.500-625BU4150	4.500	5.125	0.625	0.688	---	Add to RFQ
XP-312-04.750-500BU4150	4.750	5.375	0.500	0.550	---	Add to RFQ
XP-312-04.750-625BU4150	4.750	5.375	0.625	0.688	---	Add to RFQ
XP-312-05.000-375BU4150	5.000	5.625	0.375	0.413	---	Add to RFQ
XP-312-05.000-625BU4150	5.000	5.625	0.625	0.688	---	Add to RFQ
XP-312-05.250-625BU4150	5.250	5.875	0.625	0.688	---	Add to RFQ
XP-312-05.500-375BU4150	5.500	6.125	0.375	0.413	---	Add to RFQ
XP-312-05.500-625BU4150	5.500	6.125	0.625	0.688	---	Add to RFQ
XP-312-10.750-375B	10.750	11.375	0.375	0.413	---	Add to RFQ
XP-375-01.250-375BU4150	1.250	2.000	0.375	0.413	---	Add to RFQ
XP-375-01.250-500BU4150	1.250	2.000	0.500	0.550	---	Add to RFQ
XP-375-01.750-375BU4150	1.750	2.500	0.375	0.413	---	Add to RFQ
XP-375-01.750-625BU4150	1.750	2.500	0.625	0.688	---	Add to RFQ
XP-375-02.000-375BU4150	2.000	2.750	0.375	0.413	---	Add to RFQ
XP-375-02.000-625BU4150	2.000	2.750	0.625	0.688	---	Add to RFQ
XP-375-02.250-500BU4150	2.250	3.000	0.500	0.550	---	Add to RFQ
XP-375-02.250-625BU4150	2.250	3.000	0.625	0.688	---	Add to RFQ
XP-375-02.500-375BU4150	2.500	3.250	0.375	0.413	---	Add to RFQ
XP-375-02.500-500BU4150	2.500	3.250	0.500	0.550	---	Add to RFQ
XP-375-02.500-625BU4150	2.500	3.250	0.625	0.688	---	Add to RFQ
XP-375-02.750-375BU4150	2.750	3.500	0.375	0.413	---	Add to RFQ
XP-375-02.750-500BU4150	2.750	3.500	0.500	0.550	---	Add to RFQ
XP-375-02.750-625BU4150	2.750	3.500	0.625	0.688	---	Add to RFQ
XP-375-03.000-375BU4150	3.000	3.750	0.375	0.413	---	Add to RFQ
XP-375-03.000-500BU4150	3.000	3.750	0.500	0.550	---	Add to RFQ
XP-375-03.000-625BU4150	3.000	3.750	0.625	0.688	---	Add to RFQ
XP-375-03.250-500BU4150	3.250	4.000	0.500	0.550	---	Add to RFQ
XP-375-03.250-625BU4150	3.250	4.000	0.625	0.688	---	Add to RFQ
XP-375-03.500-500BU4150	3.500	4.250	0.500	0.550	---	Add to RFQ
XP-375-03.500-625BU4150	3.500	4.250	0.625	0.688	---	Add to RFQ
XP-375-03.750-375BU4150	3.750	4.500	0.375	0.413	---	Add to RFQ
XP-375-03.750-500BU4150	3.750	4.500	0.500	0.550	---	Add to RFQ
XP-375-04.000-500BU4150	4.000	4.750	0.500	0.550	---	Add to RFQ
XP-375-04.000-625BU4150	4.000	4.750	0.625	0.688	---	Add to RFQ
XP-375-04.250-375BU4150	4.250	5.000	0.375	0.413	---	Add to RFQ
XP-375-04.250-500BU4150	4.250	5.000	0.500	0.550	---	Add to RFQ
XP-375-04.250-625BU4150	4.250	5.000	0.625	0.688	---	Add to RFQ
XP-375-04.500-500BU4150	4.500	5.250	0.500	0.550	---	Add to RFQ
XP-375-04.500-625BU4150	4.500	5.250	0.625	0.688	---	Add to RFQ
XP-375-04.750-500BU4150	4.750	5.500	0.500	0.550	---	Add to RFQ
XP-375-05.250-375BU4150	5.250	6.000	0.375	0.413	---	Add to RFQ
XP-375-05.250-500BU4150	5.250	6.000	0.500	0.550	---	Add to RFQ
XP-375-05.250-625BU4150	5.250	6.000	0.625	0.688	---	Add to RFQ
XP-375-05.500-625BU4150	5.500	6.250	0.625	0.688	---	Add to RFQ
XP-375-06.250-375BU4150	6.250	7.000	0.375	0.413	---	Add to RFQ
XP-375-06.250-500BU4150	6.250	7.000	0.500	0.550	---	Add to RFQ
XP-375-06.250-625BU4150	6.250	7.000	0.625	0.688	---	Add to RFQ
XP-375-06.500-375BU4150	6.500	7.250	0.375	0.413	---	Add to RFQ
XP-375-07.000-500BU4150	7.000	7.750	0.500	0.550	---	Add to RFQ
XP-375-07.250-500BU4150	7.250	8.000	0.500	0.550	---	Add to RFQ
XP-375-07.250-625BU4150	7.250	8.000	0.625	0.688	---	Add to RFQ
XP-375-08.750-500BU4150	8.750	9.500	0.500	0.550	---	Add to RFQ
XP-375-10.250-500BU4150	10.250	11.000	0.500	0.550	---	Add to RFQ
XP-500-02.750-750BU4150	2.750	3.750	0.750	0.825	---	Add to RFQ
XP-500-03.000-750BU4150	3.000	4.000	0.750	0.825	---	Add to RFQ
XP-500-04.500-750BU4150	4.500	5.500	0.750	0.825	---	Add to RFQ
XP-500-10.000-750BU4150	10	11	0.750	0.825	---	Add to RFQ
XP-500-11.000-750BU4150	11	12	0.750	0.825	---	Add to RFQ
XP-500-12.500-750BU4150	12.500	13.500	0.750	0.825	---	Add to RFQ

Martin Fluid Power

U-Cups: X-Pac® Loaded U-Cup B Lip

Associated Documents

Translate This Page

Martin Fluid Power newsletter
